Cartek Motorsport Electronics - Gear Indicator & Shift Light

The GEAR INDICATOR from CARTEK is a dashboard mounted device that is designed to indicate to a driver the current selected transmission gear but also incorporates a sequential shift-light display which can indicate to a driver the optimum time to shift up a gear. The selected gear is indicated by a large, multi-coloured, 7 segment numerical display while the shift-light function is displayed at the upper part of the unit by 8 multi-coloured LEDs. These 8 LEDs form a display sequence that will commence at an engine speed prior to optimum and complete at precisely the optimum speed thereby giving the driver early indication to shift up before the rev limiter is reached or engine damage occurs. Not suitable for engines with older CDI Ignition systems.

FEATURES

  • Configure the lower and upper RPM settings with or without the engine running. Engine only needs to be revved to 50% of max RPM if setting up with engine running, or manually input RPM values using Push Button at rear of Gear Indicator.

  • Select from 6 LED display patterns for the Shift Light sequence and 7 Gear Indicator Digit Colours

  • Configure day and night brightness of the LEDs

  • Gear detection through RPM and Road speed signals, or through analogue signal input for Sequential Gearboxes.

  • Fully sealed for open-cockpit cars and motorcycles.

  • Additional RPM filter setting available designed for Historic applications






SHIFT LIGHT PATTERNS

CARTEK Gear Indicator (Club)






GEAR DIGIT COLOURS

CARTEK Gear Indicator (Club)






CONNECTION DIAGRAM

CARTEK Gear Indicator (Club)






DIMENSIONS

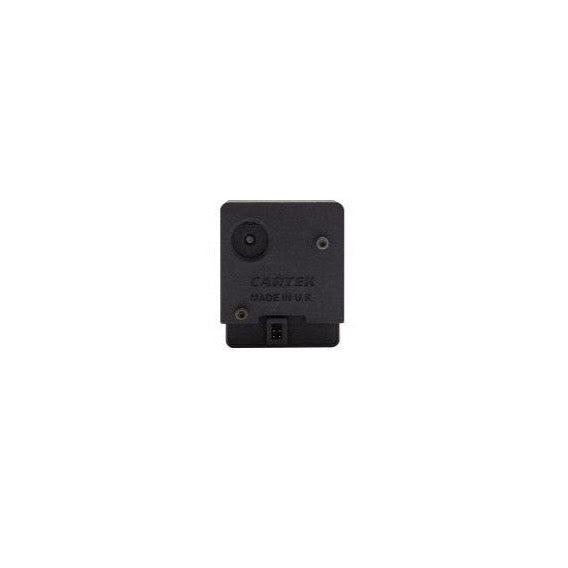

The Gear Indicator unit should be mounted securely on the dashboard where the display can be clearly seen by the driver. Mounting can be by two M3 screws from the underside or two M3 screws from the rear of the unit.

CARTEK Gear Indicator (Club)






SPECIFICATION

Size: Height 62mm, Width 50mm, Depth 23mm
Weight: 70g
Operational Voltage: 7v - 18v
Operating Temperature: -10 -+85 degrees C
Storage temperature: -40°C - +125°C
Enclosure: PA 2200 Nylon fully potted. IP64 rated
Cable Length: 70cm
